Inertial sensor
History : 20 Years more than MEMS production
Cumulative production : 1 million ea more

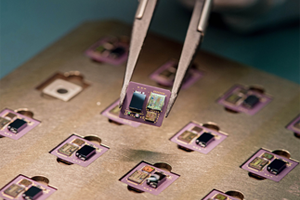

For more than 20 years, SAFRAN Colibrys has been developing and producing MEMS accelerometers for military, aeronautic, and safety critical applications. Our sensors proved its high reliability in aggressive environments of firing shocks up to 20’000g of guided munitions and in the presence of high vibrations with repetitive shocks. Guarantee of supply is a key consideration for inertial applications, such as aerospace, defense, naval and railways, due to the high cost and time required for component re-qualification programs. With more than one million MEMS sensors delivered for mission-critical applications, Safran Colibrys is a proven partner for long-term supply. Outstanding overall bias performances, attractive SWaP and low noise are the key differentiation characteristics of Safran Colibrys Inertial line of MEMS accelerometers. The sensors have perfect SWaP characterisitc and are reliable during the entire lifecycle.
![]() |
![]() |
![]() |
- PRODUCTS
- MS9000 MEMS Accelerometer
- MS9000 is a fully calibrated bulk capacitive accelerometer specially designed for high performance inertial measurements. Its overall bias performances, robustness and low power are adapted for general inertial requirements even in harsh environments.

- Key Specification
- ◾ Long term bias stability : 7.5 mg (+/-10g, max.)
◾ Analogue ratiometric output, LCC 20 package
◾ Low Consumption : < 400 A @5 VDC
◾ Measurement range : ±2, ±5. ±10. ±30. ±50. ±100. ±200 - Application
- ◾ IMU, AHRS
◾ Weapon stabilization
◾ North finding
- MS 1000 Tactical Grade MEMS Accelerometer
- Designed to address advanced, tactical grade inertial applications, the MS1000 is a new class of high performance accelerometers, based on Safran Colibrys’ 25-year MEMS development and production expertise.
MS1000 implements an innovative microelectromechanical design and electronics which unleash unbeatable performances with regard to the long term bias and scale factor repeatability, in-run bias and vibration rectification error (VRE). The 1000 series accelerometers share the same ceramic leadless hermetic package LCC20 as the 9000 series, hence preserving the same form factor.
MS1000 is available in a rich set of g-ranges +/-2, 5, 10, 30, 100g and is qualified for volume production.
- Key Specification
- ◾ Long Term Bias Repeatability : 1.2 mg (+/10g, typ)
◾ Residual Bias Modeling error : 0.7 mg (+/10g, typ)
◾ In-run bias stability (Allan Variance @ 10 s): 15 μg (+/10g, typ)
◾ Non Linearity (IEEE Norm, % of full scale) : 0.3 %
◾ Measurement range : ±2, ±5. ±10. ±30. ±100 - Application
- ◾ Inertial Measurement Units (IMUs)
◾ Attitude system (AHRS, stand by)
◾ GPS aided guidance & navigation
